Showa Sokki Portable Vibration meter
Code : 1332B, 1332B-01H, 1332B-01L, 1332B-00F, 2304A, 2369, 2302B, MG-1, LC-90, LNC-3F-1.5, LNC-3F-3, LNC-3F-5, LNC-3F-10, LNC-3F-CC, MG-3A, MG-3B, SC-10, CA-1311-1, 9803-97, 1332B-R, 9801, 9803-72, 9780, 9782, 9871
Brand : Showa Sokki
- Extremely small size and light weight offers complete portability in field use.
- A charge amplifier input is incorporated to enable farpoint vibration measurements,
eliminating influences originated in length of input cable.
- Acceleration measurement up to 200m/s2 for velocity measurement up to 200mm/s (RMS)
and for displacement measurement up to 20mm p-p.
- A commercially-available transistoruse dry battery is used as the power source for complete portability.
And the battery alarm system is incorporated for battery check.
- Piezo Electric Pickup is used as the input transducer for long life operation
and wide frequency range of 10 to 5000Hz.

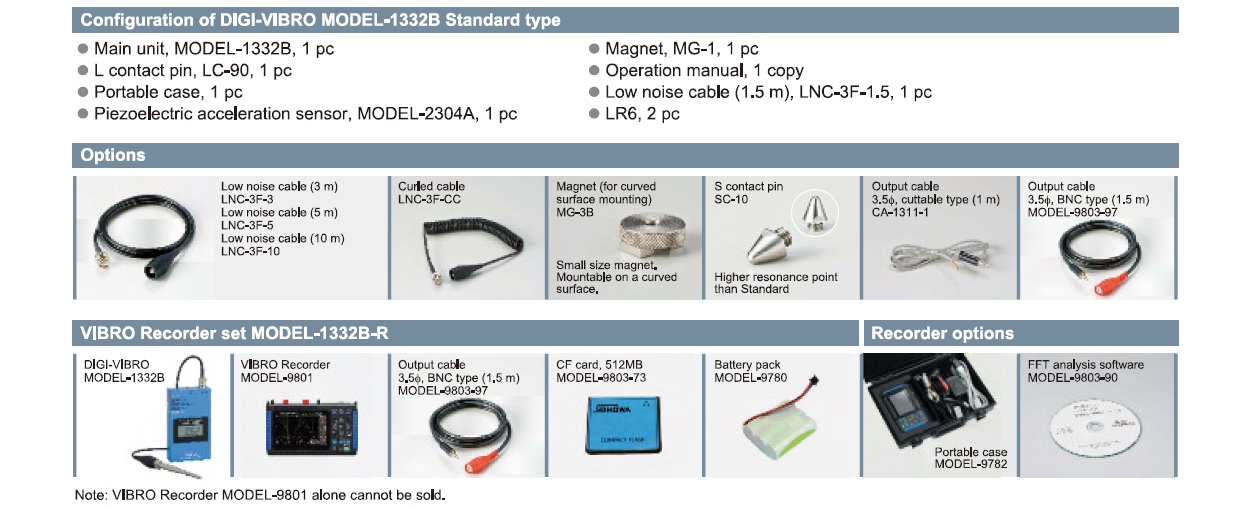

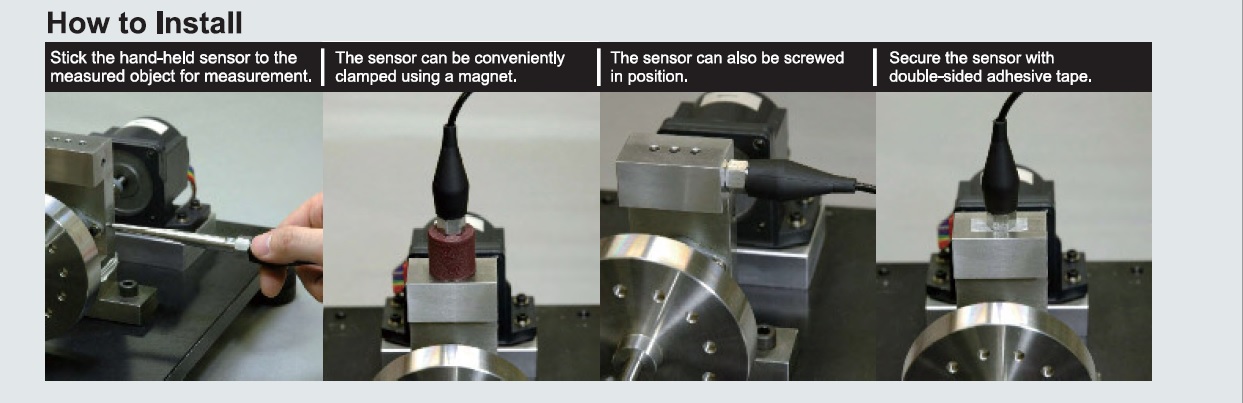

- Full accessories of a contact pin and a magnetic holder are provided
as standard for various field use.
|
