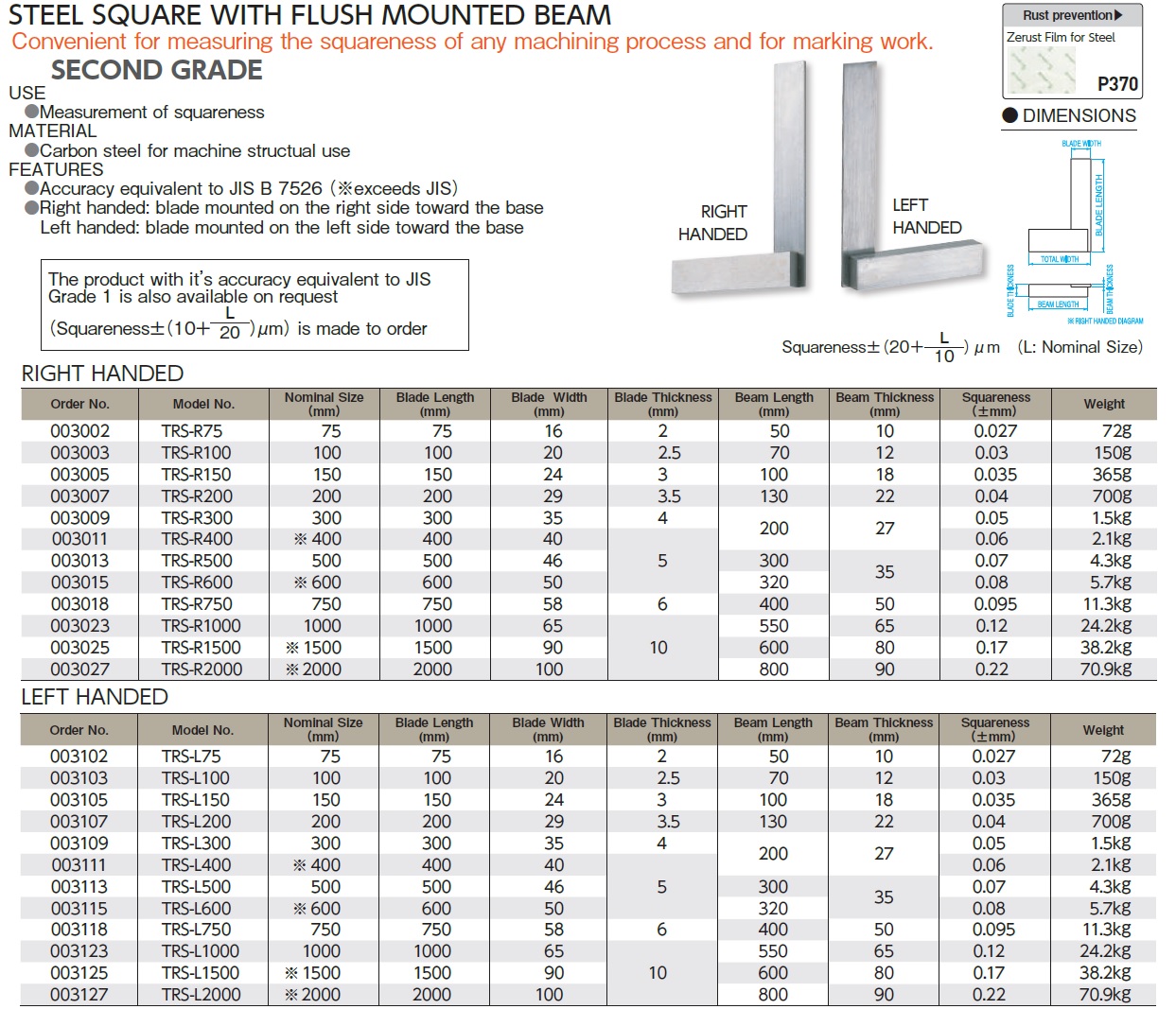

SK STEEL SQUARE WITH FLUSH MOUNTED BEAM

Code : TRS-R75, TRS-R100, TRS-R150, TRS-R200, TRS-R300, TRS-R400, TRS-R500, TRS-R600, TRS-R750, TRS-R1000, TRS-R1500, TRS-R2000, TRS-L75, TRS-L100, TRS-L150, TRS-L200, TRS-L300, TRS-L400, TRS-L500, TRS-L600, TRS-L750, TRS-L1000, TRS-L1500, TRS-L2000
Brand : SK

USE
● Measurement of squareness
MATERIAL
● Machine grade carbon steel
FEATURES
● Available in "right handed" and "left
handed" versions

● The blade and beam are permanently secured by rivets

● Dimension/ accuracy accordance to JIS Grade 2
● JIS Grade 1 equivalent（Squareness±（10＋ L
20 ）μm）is made to order
